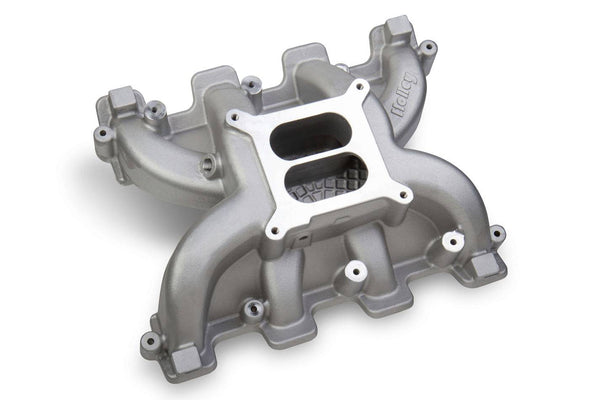

Holley LS3/L92 Duel Plane Carbureted Intanke Manifold, Its dual plane design makes it perfect for low end torque, yet it still pulls all the way to 6,500 RPM! Our O-ring cylinder head mounting flange gaskets provide an OEM style seal and make installation a snap.
- 1500-6500 RPM power band
- 4150 square bore carb mounting flange
- Optimized runner layout and constant cross sectional area provide a broad torque curve
- Minimum carb flange height means it fits in vehicles with minimal or no hood modifications
- Cast aluminum construction and efficient casting design for light weight, consistent wall thicknesses and improved casting quality
- Weighs 14.56 lbs.

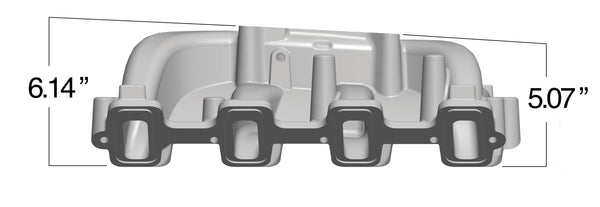

- Height (front) - 5.07" from front lifter valley cover to carb mounting flange
- Height (rear) - 6.14" from rear lifter valley cover to carb mounting flange
- Port size - 2.454" height x 1.09" wide
- Mounting flange gasket type - O-ring
- Includes Viton® O-rings - Viton® is a registered trademark of DuPont Performance Elastomers
- Holley Intake Manifold
- Rectangle Port
- Aluminum
- Natural
- GM LS-Series
- Each
