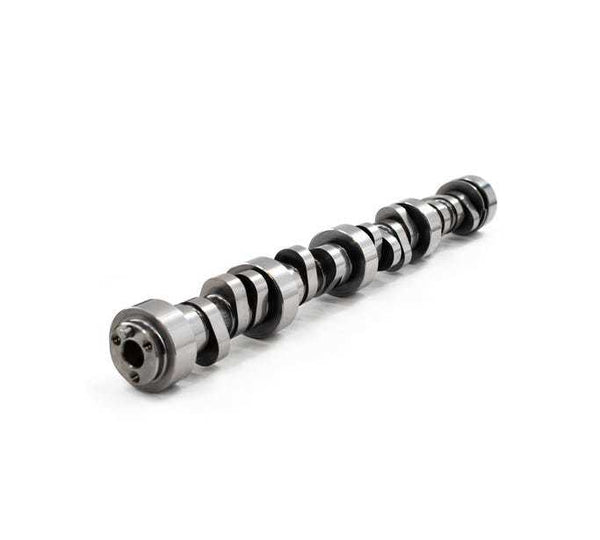

The BTR PDS Stage 4 Camshaft (BTRBTR-PDSSTAGE4) is engineered for high-performance applications in GM LSA and LS9 engines, including models like the Camaro ZL1 and Corvette ZR1. This camshaft offers significant power gains while maintaining excellent streetability.
Key Features:
-
Engine Compatibility: GM LSA and LS9 engines (Camaros, Corvettes)
-
Cam Type: Hydraulic roller
-
Duration @ .050": 229° intake / 25X° exhaust
-
Lift: 0.636" intake / 0.636" exhaust
-
Lobe Separation Angle: 116°
-
Idle Characteristics: Ultra-aggressive idle
-
Power Gains: Designed for high RPM applications with significant power increases
-
Torque Converter: Aftermarket converter recommended
-
Valve Spring Requirements: Requires .660" lift dual valve springs with titanium retainers and hardened pushrods
-
Cam Bolt Pattern: 3-bolt
This camshaft is developed using BTR's in-house lobe designs, Spintron, and engine dyno testing to achieve optimal power curves while maintaining valvetrain stability and durability.
