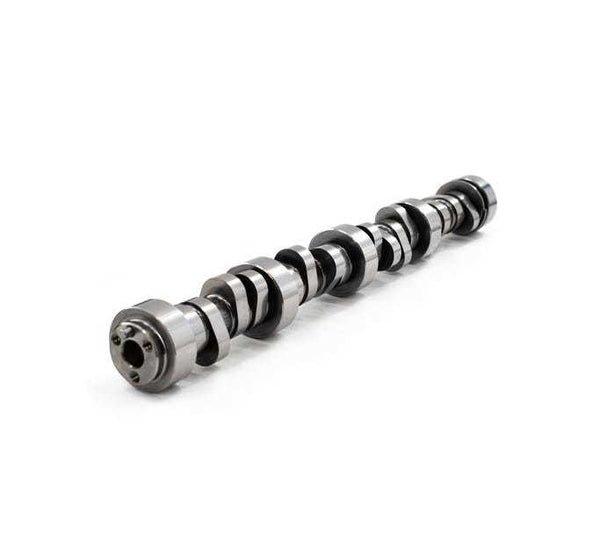

The Brian Tooley Racing LS1/LS2 Stage 2 V2 Camshaft (BTRBTR-LS1STAGE2) is engineered for naturally aspirated applications in GM Gen III/IV LS engines, including LS1 and LS2 variants. This camshaft offers a balance between aggressive performance and daily drivability, making it suitable for street-driven vehicles seeking enhanced power and throttle response.
Key Features:
-
Engine Compatibility: GM Gen III/IV LS engines (LS1, LS2, LS6, LQ4, LQ9)
-
Cam Type: Hydraulic roller
-
Duration @ .050": 221° intake / 224° exhaust
-
Lift: 0.624" intake / 0.636" exhaust
-
Lobe Separation Angle: 112°
-
Idle Characteristics: Moderate idle suitable for daily driving
-
Power Gains: Approximately 16% peak horsepower increase over stock LS2 cam
-
Recommended Stall: 2800+ RPM for automatic transmissions
-
Valvetrain Requirements: Requires .660" lift dual valve springs with titanium retainers and hardened pushrods
-
Cam Bolt Pattern: 3-bolt
This camshaft has been developed using advanced BTR-designed lobes, Spintron, and engine dyno testing to achieve optimal power curves while maintaining valvetrain stability and durability.
