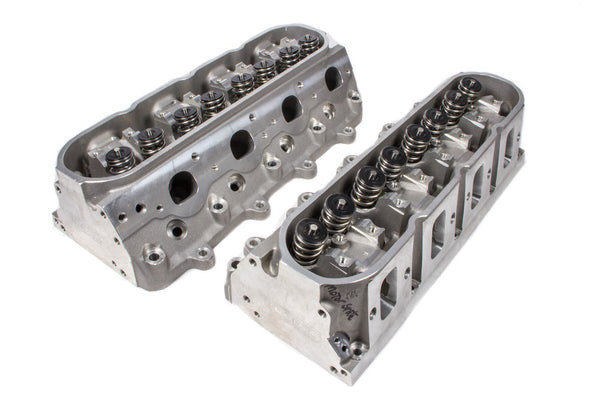

Brodix LS aluminum heads 262cc BR 7 assembled heads with 71cc chamber 2.204 intake/ 1.614 exhaust.The BR 7 is an out-of-the-box version that comes standard with 71 cc combustion chambers, bowls blended, and intake ports matched
- GM LS Cylinder Head
- BR 7
- Assembled
- 2.204 / 1.614 in Valves
- 262 cc Intake
- 71 cc Chamber
- 1.350 in Springs
- Aluminum
- 4.125 Minimum Bore
- GM LS-Series
- Pair
| Part Number | Valve Size |
0.200 |
0.300 |
0.400 |
0.500 |
0.600 |
0.650 |
0.700 |
8.000 |
9.000 |
| BR 7 | 2.204 Intake | 150 | 144 | 294 | 334 | 360 | 364 | |||
| 1.614 Exhaust | 113 | 158 | 188 | 208 | 216 | 221 |
