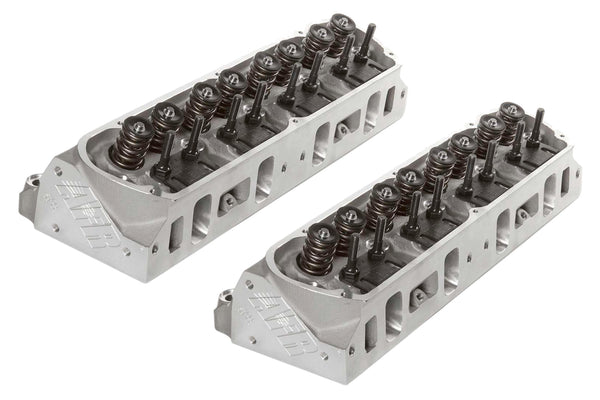

AFR SBF Aluminum heads 220cc renegade race assembled cylinder heads with 58cc chamber and 2.100 intake/ 1.570 exhuast valves. recommended for race applications and radical "Pro-Street" builds.
- Small Block Ford Cylinder Head
- Renegade Race
- Assembled
- 2.100 / 1.570 in Valves
- 220 cc Intake
- 58 cc Chamber
- 1.550 in Springs
- Aluminum
- 20 Degree Valve Angle
- Pair
| 220cc Street Head Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .600 | .700 | .800 | |
| Int | 135 | 194 | 258 | 295 | 315 | 325 | 331 |
| Exh | 121 | 171 | 215 | 238 | 245 | 249 | 250 |
Test conducted at 28" of water (pressure) on Superflow 600
Bore Size: 4.155", 3/4" radius plate exhaust, 1 7/8" curved pipe
