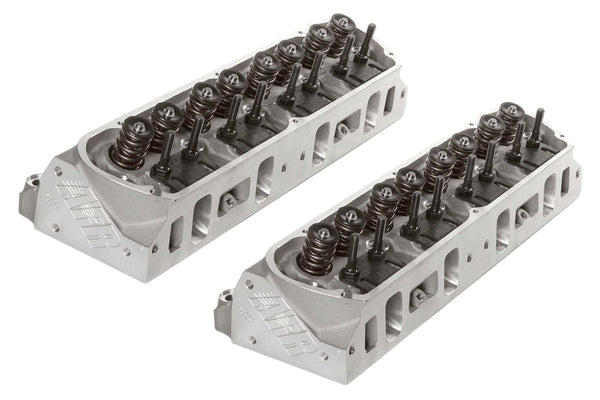

AFR SBF Aluminum heads 205cc renegade race assembled heads with 58cc chamber 2.080 intake/ 1.600 exhaust valves.Recommended for race applications and very agressive street/strip builds operating up to 7400 RPM. Maximum intake flow potential @0.750" lift is 331 CFM
- Small Block Ford Cylinder Head
- Renegade Race
- Assembled
- 2.080 / 1.600 in Valves
- 205 cc Intake
- 58 cc Chamber
- 1.550 in Springs
- Aluminum
- Pair
| 205cc Street Head Flow Chart | ||||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .700 | .750 | |
| Int | 139 | 199 | 251 | 285 | 297 | 308 | 317 | 320 |
| Exh | 121 | 170 | 206 | 219 | 227 | 230 | 232 | 234 |
Test conducted at 28" of water (pressure) on Superflow 600
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
