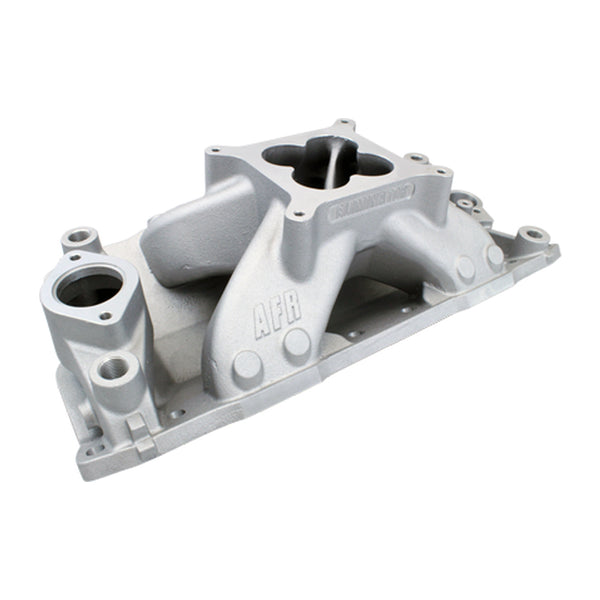

AFR SBC Eliminator Race Single Plane Intake Manifold (4150 Flange) Designed for SB Chevy 23° heads with standard port location. This manifold is excellent for larger cubic inch serious street/strip or a wide variety of race applications.
- Carburetor pad height is 5.500” with 4150 carb flange
- Comes with cast in nitrous bosses
- Front and rear water outlets for additional cooling benefits
- Dual distributor clamp hold downs
- Specifically designed to fit and optimize your AFR heads with our unique carburetor pad clover shaped pattern
- Cast and machined in the USA
- As Cast Port Dimensions: 2.01" H x 1.09" W
- AFR Intake Manifold
- Eliminator Race
- Square Bore
- Single Plane
- Aluminum
- Natural
- Small Block Chevy
- Each
