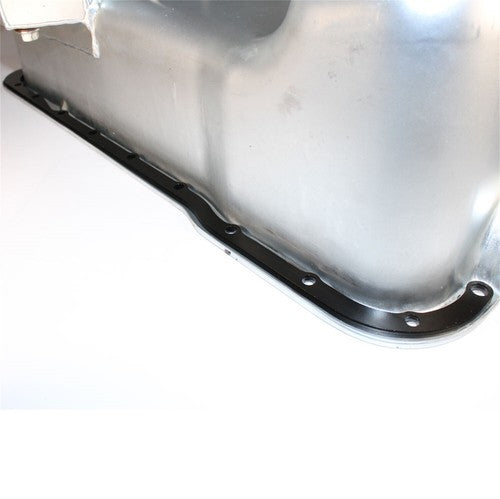

Enhance the durability and sealing of your Small Block Ford engine with the Ford Performance M-6674-302 Oil Pan Reinforcement Rails. Designed specifically for 289 and 302 cubic inch engines, these precision laser-cut steel rails provide additional support to the oil pan flange, minimizing the risk of leaks and ensuring a secure seal.
Key Features:
-
Part Number: M-6674-302
-
Engine Compatibility: Ford Small Block 289 and 302 V8s
-
Material: 3/16” thick precision laser-cut steel
-
Finish: Black painted for corrosion resistance
-
Design: Specifically engineered to reinforce the oil pan flange, providing a more uniform clamping force when the oil pan bolts are tightened
-

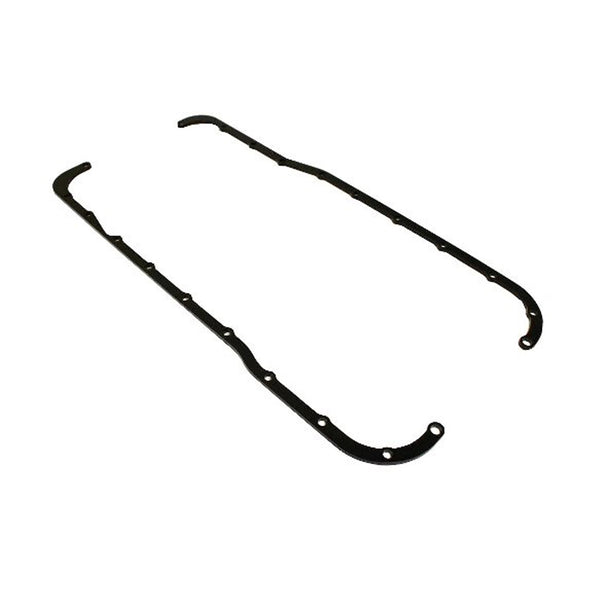

Includes: Left and right reinforcement rails
-
Installation: Designed to be used with flat flange oil pans and one-piece silicone rubber oil pan gaskets (e.g., Ford Performance M-6710-A50)
-
Note: Longer oil pan bolts are recommended for installation
These reinforcement rails are utilized in all Ford Performance 302, 347, and 363 crate engines, underscoring their reliability and effectiveness in high-performance applications. By providing additional rigidity to the oil pan mounting surface, they help prevent oil leaks and maintain proper gasket compression over time.
Installation Notes:
-
Gasket Compatibility: Recommended for use with one-piece silicone rubber oil pan gaskets, such as Ford Performance M-6710-A50.
-
Bolt Length: Due to the added thickness of the reinforcement rails, longer oil pan bolts may be necessary to ensure proper thread engagement.
-
Oil Pan Fitment: Designed to fit original-style oil pans with flat flanges; may not be compatible with certain aftermarket oil pans.
